Kia Rio: Mirror / Outside Rear View Mirror

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Mirror / Outside Rear View Mirror

Components and components location

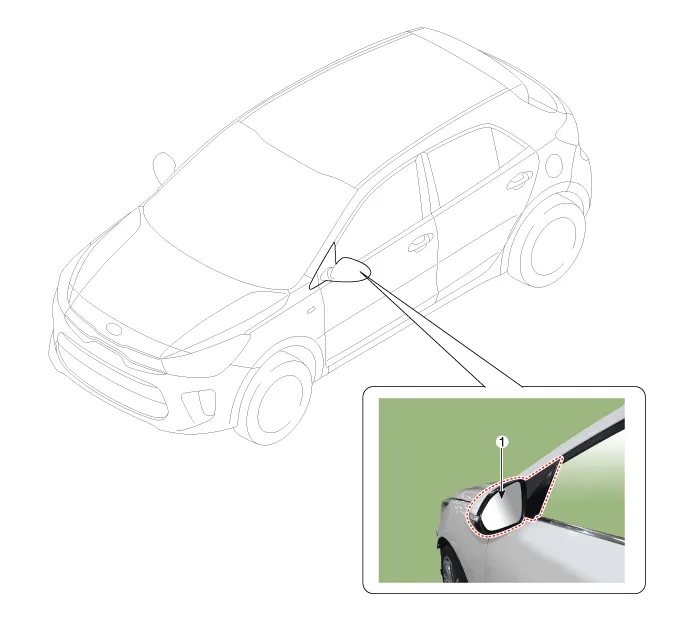

Component Location

1. Outside rear view mirror


Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Be careful not to bend or scratch the trim and panels.

1.

Separate the front door quadrant inner cover (A) by using a or remover.

2.

Remove the front door tweeter speaker connector (A).

3.

Disconnect the outside rear view mirror connector (A) and loosen the nuts (B).

4.

Remove the outside rear view mirror (A).

5.

Install in the reverse order of removal.


•

Make sure the connector is connected properly.

•

Replace any damaged clips.
