Kia Rio: Audio / Multimedia Jack
Schematic diagrams

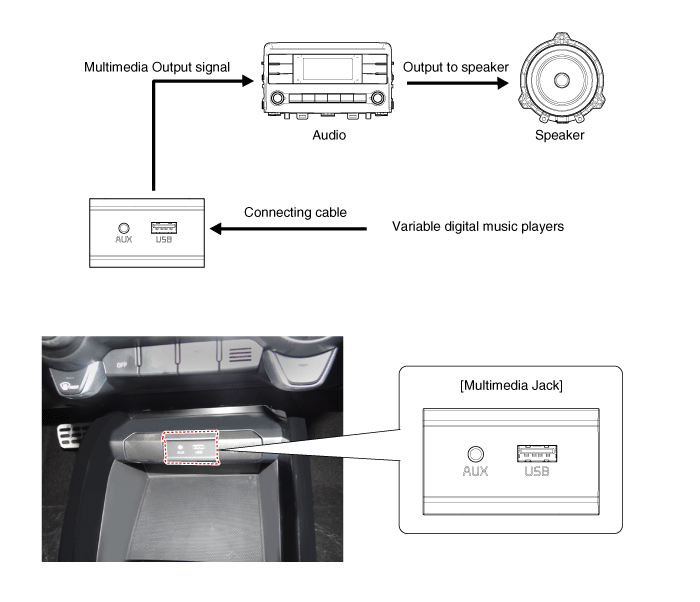

Description and operation
The multimedia jack on the console upper cover is for customers who like to listen
to external portable music players like the MP3 etc., through the vehicle's sound
system when it is linked to this jack. The customer has this added option.
In case of distorted sound coming from the AUX-linked external music players,
the audio unit may not be defective but the output level of the player does not
match the specification of the AUX.
Repair procedures
Multimedia Jack
|
Put on gloves to protect your hands.
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape around
the related parts, to prevent damage.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front console upper cover.
(Refer to Body - "Floor Console Assembly")
|
| 3. |

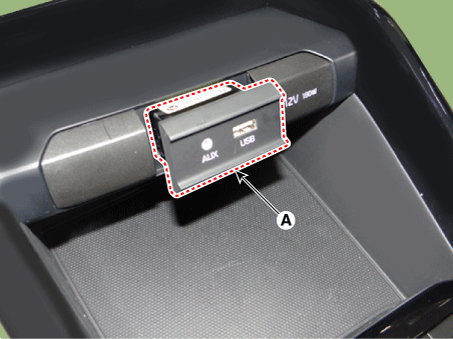

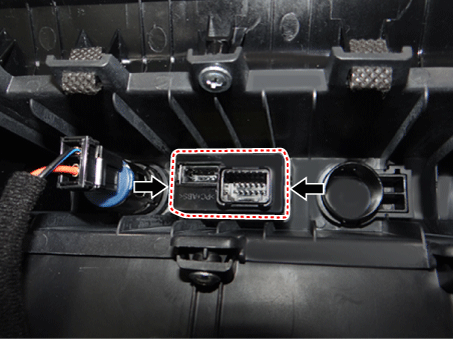

Remove the multimedia jack (A) after releasing the fixed hooks.
|
USB Charger
|
Put on gloves to protect your hands.
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape around
the related parts, to prevent damage.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the floor console assembly.
(Refer to Body - "Floor Console Assembly")
|
| 3. |

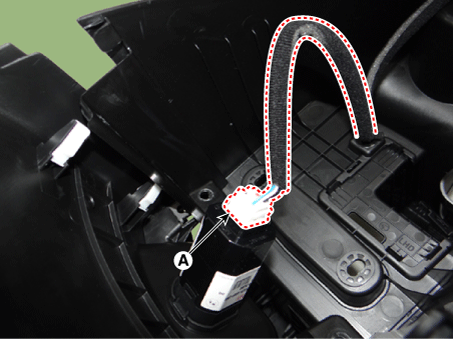

Disconnect the USB charger connector (A).
|
| 4. |

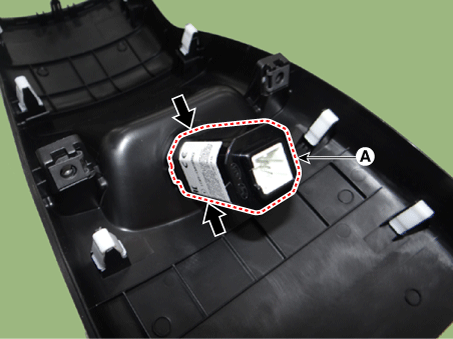

Remove the USB charger (A) after releasing the fixed hooks.
|
Multimedia Jack
| 1. |
Install the multimedia jack.
|
| 2. |
Install the front console upper cover.
|
| 3. |
Connect the negative (-) battery terminal.
| •
|
Make sure the multimedia connector and the console front
tray connectors are plugged in properly.
|
| •
|
Check the audio system for normal operation.
|
|
|
USB Charger
| 1. |
Install the USB charger.
|
| 2. |
Connect the USB charger connector.
|
| 3. |
Install the floor console assembly.
|
| 4. |
Connect the negative (-) battery terminal.
|
Make sure that the cables and connectors are plugged in properly.
|
|
