Kia Rio: Light bulbs / Exterior care
Exterior general caution
It is very important to follow the label directions when using any chemical cleaner
or polish. Read all warning and caution statements that appear on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish from rust and deterioration, wash it thoroughly
and frequently at least once a month with lukewarm or cold water.
If you use your vehicle for off-road driving, you should wash it after each off-road
trip. Pay special attention to the removal of any accumulation of salt, dirt, mud,
and other foreign materials. Make sure the drain holes in the lower edges of the
doors and rocker panels are kept clear and clean.
Insects, tar, tree sap, bird droppings, industrial pollution and similar deposits
can damage your vehicle’s finish if not removed immediately.
Even prompt washing with plain water may not completely remove all these deposits.
A mild soap, safe for use on painted surfaces, may be used.
After washing, rinse the vehicle thoroughly with lukewarm or cold water. Do not
allow soap to dry on the finish.
WARNING
After washing the vehicle, test the brakes while driving slowly to see if
they have been affected by water. If braking performance is impaired, dry the brakes
by applying them lightly while maintaining a slow forward speed.
High-pressure washing
- When using high-pressure washers, make sure to maintain sufficient distance
from the vehicle. Insufficient clearance or excessive pressure can lead to component
damage or water penetration.
- Do not spray the camera, sensors or its surrounding area directly with a
high pressure washer. Shock applied from high pressure water may cause the device
to not operate normally.
- Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be damaged if they come into contact with high pressure
water.

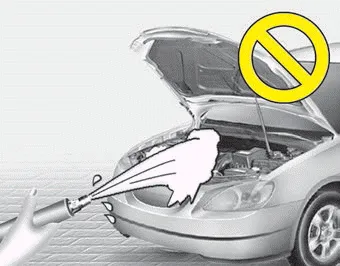

CAUTION - Wet engine
- Washing the engine compartment with water, including high pressure water,
may cause the failure of electrical circuits located in the engine compartment.
- Never allow water or other liquids to come in contact with electrical/electronic
components inside the vehicle as this may damage them.
Waxing
Wax the vehicle when water will no longer bead on the paint.
Always wash and dry the vehicle before waxing. Use a good quality liquid or paste
wax, and follow the manufacturer’s instructions. Wax all metal trim to protect it
and to maintain its luster.
Removing oil, tar, and similar materials with a spot remover will usually strip
the wax from the finish. Be sure to re-wax these areas even if the rest of the vehicle
does not yet need waxing.
Do not apply wax on an embossed unpainted unit, as it may tarnish the unit.
CAUTION - Drying vehicle
- Wiping dust or dirt off the body with a dry cloth will scratch the finish.
- Do not use steel wool, abrasive cleaners, acid detergents or strong detergents
containing high alkaline or caustic agents on chrome-plated or anodized aluminum
parts. This may result in damage to the protective coating and cause discoloration
or paint deterioration.
1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs wi ...
Finish damage repair
Deep scratches or stone chips in the painted surface must be repaired promptly.
Exposed metal will quickly rust and may develop into a major repair expense.
If your vehicle is ...
